Leak detection and preventive maintenance often require identifying problems that are invisible to the naked eye. Infrared thermography has become a powerful tool for this purpose North West leak detection, allowing technicians to detect leaks, insulation failures, and other anomalies by visualizing temperature differences across surfaces.
What Is Infrared Thermography?
Infrared thermography, also known as thermal imaging, uses cameras that detect infrared radiation emitted by objects. Every object with a temperature above absolute zero emits infrared energy, which can be captured and converted into a thermal image. In these images, temperature variations are represented as color gradients, allowing operators to see areas of abnormal heat or cold that may indicate a leak or system inefficiency.
How Infrared Thermography Detects Leaks
Leaks in pipelines, HVAC systems, roofs, or walls often produce temperature anomalies:
- Water or air leaks can create cooler spots where cold water or air escapes.
- Steam or hot fluid leaks generate localized hot areas.
- Insulation defects allow heat to escape or accumulate, creating detectable temperature contrasts.

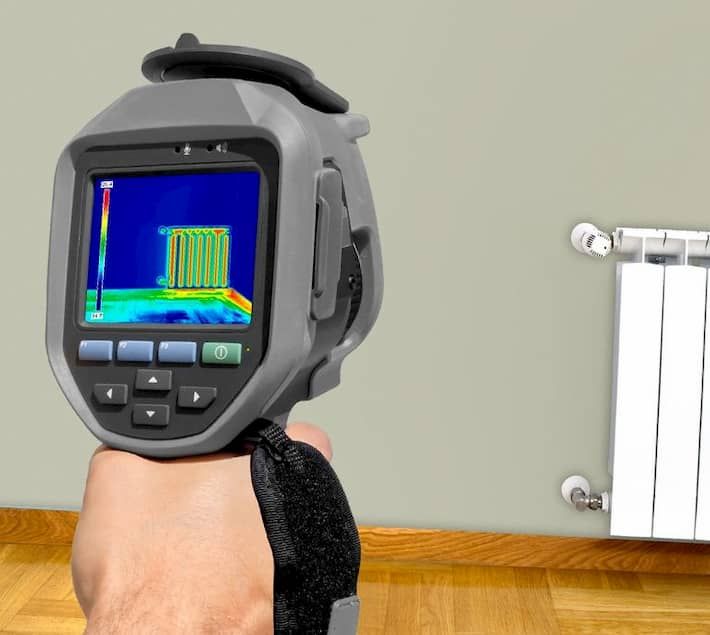

Using infrared cameras, technicians can scan surfaces without direct contact, identifying these anomalies quickly and safely.
Advantages of Infrared Thermography
- Non-Invasive: No need to dismantle walls, ceilings, or equipment.
- Real-Time Results: Thermal images provide immediate visual feedback.
- Wide Application Range: Useful in plumbing, roofing, HVAC, industrial pipelines, and electrical systems.
- Early Detection: Spots potential issues before they become visible or cause significant damage.
- Safety: Allows inspection of hot, pressurized, or inaccessible areas without physical exposure.
Applications Across Industries
- Plumbing and Water Systems: Detect hidden leaks behind walls, under floors, or in ceilings.
- HVAC Systems: Identify duct leaks, poor insulation, or refrigerant loss.
- Roofing and Building Envelopes: Locate water intrusion, heat loss, or insulation failures.
- Industrial Equipment: Monitor pipelines, boilers, and tanks for hot or cold leaks.
- Electrical Systems: Identify overheating components or poor connections that could indicate faults.
Best Practices for Accurate Detection
- Optimal Environmental Conditions: Thermal contrast is more apparent in cooler ambient conditions or when the system is operating at normal temperature differentials.
- Camera Calibration: Ensure infrared cameras are properly calibrated for the material and surface being inspected.
- Proper Interpretation: Temperature anomalies must be carefully analyzed; not all hot or cold spots indicate leaks. Expertise is essential to distinguish between genuine leaks and benign thermal variations.
- Integration with Other Methods: Combining infrared thermography with acoustic sensors, moisture meters, or ultrasonic detection can improve accuracy.
Limitations
- Surface Dependency: Only surface temperature differences are detectable; deeply buried leaks may not produce a visible thermal signature.
- Environmental Interference: Sunlight, wind, and reflections can affect readings.
- Requires Skilled Operators: Accurate interpretation requires training and experience.
Conclusion
Infrared thermography is a non-invasive, fast, and highly effective method for detecting leaks and spotting temperature anomalies across residential, commercial, and industrial systems. By converting invisible heat patterns into visible images, it enables early detection, reduces repair costs, and prevents water or energy waste.
In modern leak detection, infrared thermography serves as a critical tool, allowing technicians to “see the unseen” and address problems before they escalate into costly or dangerous failures.
